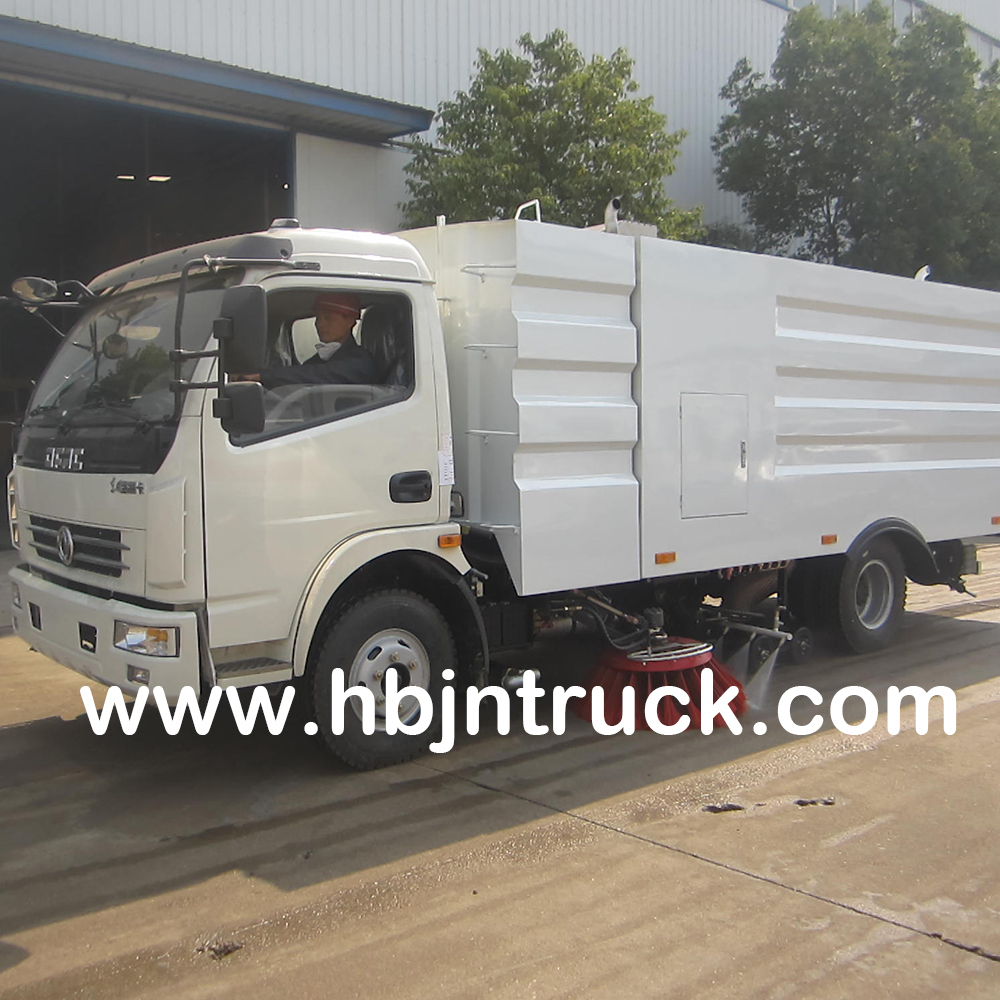

High Quality Street Sweeper Truck with Cummins Engine

  • High Quality Street Sweeper Truck with Cummins Engine
  • High Quality Street Sweeper Truck with Cummins Engine
  • High Quality Street Sweeper Truck with Cummins Engine
  • High Quality Street Sweeper Truck with Cummins Engine

High Quality Street Sweeper Truck with Cummins Engine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 50 Days
    Packaging: Nude
    Transportation: Ocean,Land
    Port: Shanghai,Qingdao,Guangzhou

Basic Info

Model No.: JDF5143JSQ

Product Description

This street sweeper truck is also capable of cleaning road pavement and curbs simultaneously, because of high pressure spray system is equipped at the rear end of the dustbin to prevent dust formation or lower road temperature during summer. the high pressure spray bars is a V-shaped on the left and right side. the agnle of the V-shaped design and the spray angle can be adjusted to increase efficiency.

Two sweepers in the middle and nozzle at the back ensure wide sweeping width and high efficiency. the left and right sweepers can operate independently or together, providing flexibility for the operator. the sweeper also features an automatic collision avoidance and repositioning functions. the sweeper discs will automatically retract when there is obstacle in the path, effectively protecting them from damage. Sweeping speed can be adjust to low, medium or high based on different cleaning requirements to ensure that all dirt can be effectively remove and lower operating costs.

The dustbin and water tank all made of 304 stainless steel.

The truck engine is Cummins brand.

Vehicle model

JDF5143JSQ

Brand

Jiangte

Drive type

4x2, left-hand drive

Chassis model

EQ1090TJ23

Chassis manufacturer

Dongfeng

Cabin

Isuzu ELF cab, single row, power steering, air conditioner, radio, central lock, electrical window lifter

Wheel base (mm)

4500

Overall dimension (L*W*H)(mm)

7950×2500×3440

Cargo Body Dimension (L x W x H)

4350 x 2294 x 600

Total mass (kg)

14105

Curb weight (kg)

7100

Rated payload weight (kg)

6810

Max speed (Km/h)

900

Maximum gradeability

40%

Engine

Engine model

4HK1-TCG40

Engine make

Isuzu

Rated power

140 kw (190 hp) @2500rpm

Displacement

5193

Emission standard

Euro 4

Type

Diesel engine, 4-cylinders in line, water cooled, trubocharged, after cooled, direct injection

Gear box

Model

ISUZU MLD

Number of gears

6 forward gears & 1 reverse, synchronized

Brake

Air brake

Axle

Front

load capacity 6.3 ton

Rear

load capacity 13 ton

Tire type

9.00-20 tyre, 6+1 pieces

battery

Voltage (V)

12

Battery capacity (A.h)

100 x 2

Fuel Tank

Type

Steel fuel tank, with lockable cap

Capacity

100 lit
